Name: Nuheat 240V Floor Warming Standard Heat Mat
SKU: 422862

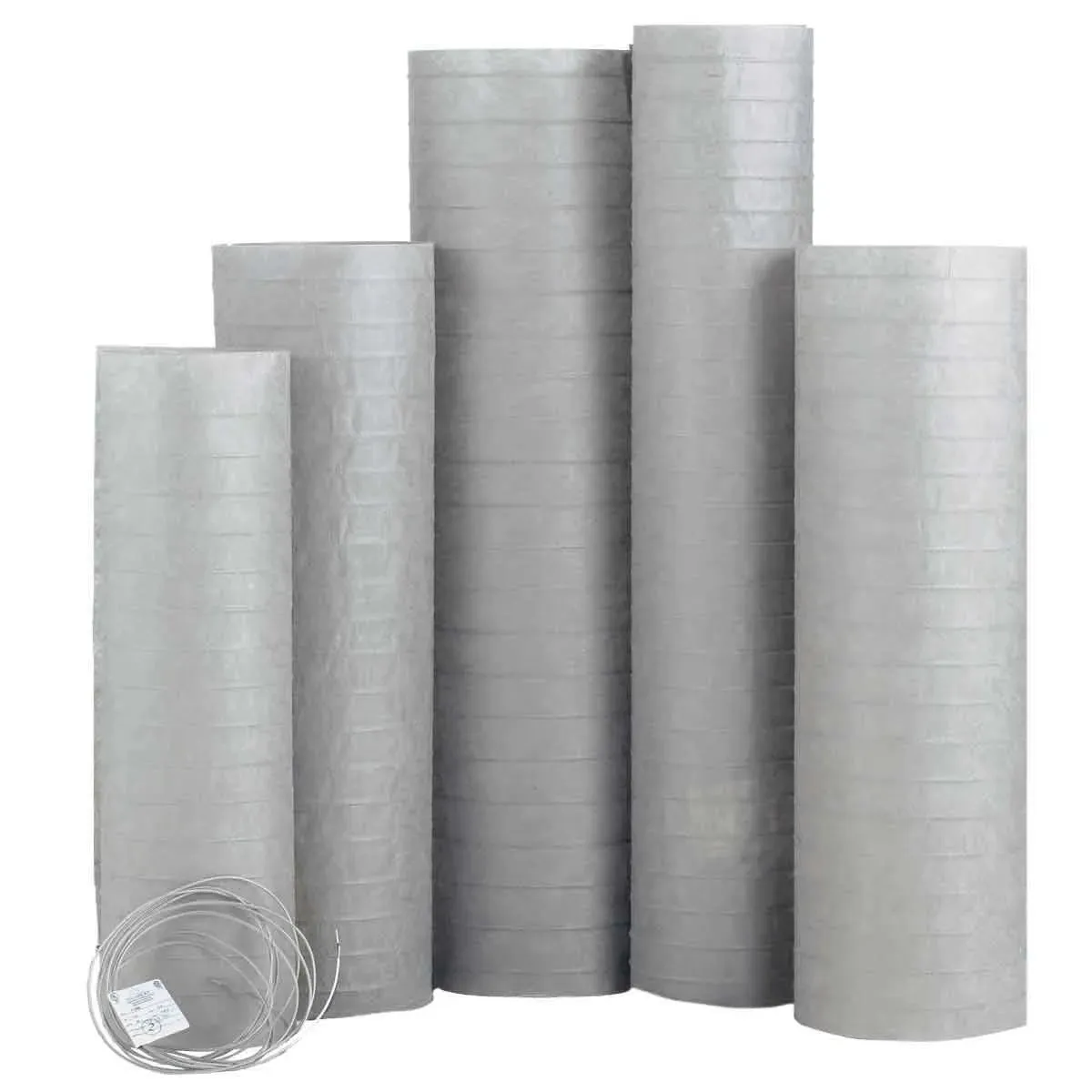

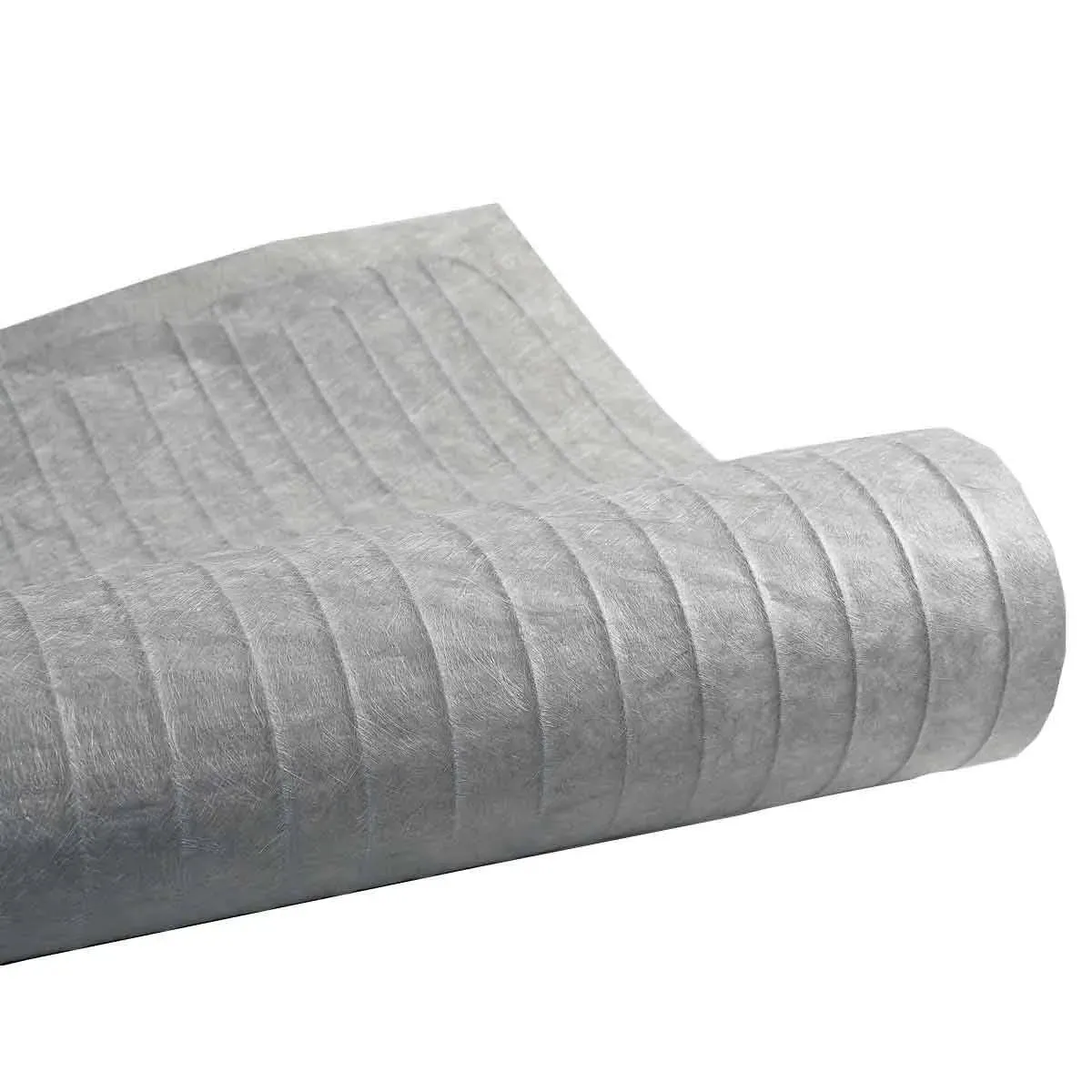

Nuheat 240V Floor Warming Standard Heat Mat

Nuheat 240V Heat Mats are the perfect floor heating solution. They are installed easily under many flooring materials and provide simple radiant floor heat to any room.

Features

Energy efficient, 1/8'' thick heat mats can be controlled using a variety of thermostats (programmable or non-programmable)
Nuheat mats provide relaxing warmth to tile, stone, granite, laminate, and engineered wooden floors
A 25-year warranty covers all Nuheat floor heating mats
Use either one or a combination of floor heat mats to deliver underfloor heat to the entire room
Nuheat mats are available in over 60 sizes and come in 240 and 120-volt formats.

Custom Nuheat Mat Sizes

Need help finding the size you need? Custom Nuheat Mat Sizes are available for particular orders! Follow the Nuheat Measurement Instructions and send your room layout to [email protected] for a complete quote.

240 Volt Nuheat Mat Specifications
Model	Volts	Watts	Amps	Ohms	Sq. Ft.	Dimensions (In.)
G1509	240	180	0.8	320	15	60 x 36
G1510	240	210	0.9	274	17.5	60 x 42
G1512	240	240	1	240	20	60 x 48
G1515	240	300	1.3	192	25	60 x 60
G1808	240	180	0.8	320	15	72 x 30
G1809	240	216	0.9	267	18	72 x 36
G1810	240	252	1.1	229	21	72 x 42
G1812	240	288	1.2	200	24	72 x 48
G1815	240	360	1.5	160	30	72 x 60
G1818	240	432	1.8	133	36	72 x 72
G2106	240	168	0.7	343	14	84 x 24
G2108	240	210	0.9	274	17.5	84 x 30
G2109	240	252	1.1	229	21	84 x 36
G2110	240	294	1.2	196	24.5	84 x 42
G2112	240	336	1.4	171	28	84 x 48
G2115	240	420	1.8	137	35	84 x 60
G2118	240	504	2.1	114	42	84 x 72
G2121	240	588	2.5	98	49	84 x 84
G2506	240	192	0.8	300	16	96 x 24
G2508	240	240	1	240	20	96 x 30
G2509	240	288	1.2	200	24	96 x 36
G2510	240	336	1.4	171	28	96 x 42
G2512	240	384	1.6	150	32	96 x 48
G2515	240	480	2	120	40	96 x 60
G2518	240	576	2.4	100	48	96 x 72
G2521	240	672	2.8	86	56	96 x 84
G2525	240	768	3.2	75	64	96 x 96
G2706	240	216	0.9	267	18	108 x 24
G2708	240	270	1.1	213	22.5	108 x 30
G2709	240	324	1.4	178	27	108 x 36
G2710	240	378	1.6	152	31.5	108 x 42
G2712	240	432	1.8	133	36	108 x 48
G2715	240	540	2.3	107	45	108 x 60
G2718	240	648	2.7	89	54	108 x 72
G2721	240	756	3.2	76	63	108 x 84
G2725	240	864	3.6	67	72	108 x 96
G2727	240	972	4.1	59	81	108 x 108
G3006	240	236	1	244	19.7	118 x 24
G3008	240	295	1.2	195	24.6	118 x 30
G3009	240	354	1.5	163	29.5	118 x 36
G3010	240	413	1.7	139	34.4	118 x 42
G3012	240	472	2	122	39.3	118 x 48
G3015	240	590	2.5	98	49.2	118 x 60
G3018	240	708	3	81	59	118 x 72
G3021	240	826	3.4	70	68.8	118 x 84
G3025	240	944	3.9	61	78.7	118 x 96
G3027	240	1062	4.4	54	88.5	118 x 108
G3030	240	1150	4.8	50	95.1	118 x 118
G144036	240	432	1.8	133	36	144 x 36
G144060	240	720	3	80	60	144 x 60
G144072	240	864	3.6	67	72	144 x 72
G144096	240	1152	4.8	50	96	114 x 96
G144108	240	1296	5.4	44	108	144 x 108
G144120	240	1440	6	40	120	144 x 120
G144140	240	1680	7	34	140	144 x 140
G168096	240	1344	5.6	43	112	168 x 96
G168108	240	1512	6.3	38	126	168 x 108
G168120	240	1680	7	34	140	168 x 120
G168140	240	1956	8.2	29	163.3	168 x 140
G240120	240	2400	10	24	200	240 x 120
